    Single Mode PVC G.657A1 SC/APC PLC Splitter 1x2

    Ask Lasest Price
    Brand Name : XDK
    Model Number : PLC-2
    Certification : ISO9001, ISO14001, UL, CPR
    Payment Terms : L/C, D/A, D/P, T/T
    Price : negotiation
    Supply Ability : 30000 pcs per month
    • Product Details
    • Company Profile

    Single Mode PVC G.657A1 SC/APC PLC Splitter 1x2


    Customized PVC SC/APC PLC Splitter 1x2 Singlemode G.657A1 Fiber Duct Splitter


    Description:

    Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
    Blockless PLC splitter has stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It's mainly used for various connection and distribution boxes or network cabinets.
    1X2 PLC splitter, uniform distribution of optical signalBlockless PLC Splitter

    Mini 900um Plc Splitter 1x2 , SC/APC Single Mode Fiber Splitter 1

    Mini 900um Plc Splitter 1x2 , SC/APC Single Mode Fiber Splitter 2


    Simple and Easy Connection

    Blockless PLC splitter can be easily installed in fiber splice closure, optical distribution box for space saving and no need to splice.

    Mini 900um Plc Splitter 1x2 , SC/APC Single Mode Fiber Splitter 3
    Product Specification
    Package StyleMini ModuleConfiguration Type1x2
    Fiber TypeSinglemode G.657A1Connector TypeSC/APC
    Input/Output Fiber Diameter900μmInput/Output Fiber Length1.5m
    Insertion Loss≤4.0dBReturn Loss≥50dB
    Loss Uniformity≤0.4dBDirectivity≥55dB
    Polarization Dependent Loss≤0.2dBTemperature Dependent Loss≤0.5dB
    Wavelength Dependent Loss≤0.3dBOperating Bandwidth1260~1650nm
    Split Ratio50/50Steel Tube Dimensions (HxWxD)0.16"x1.97"x0.28" (4x50x7mm)
    Operating Temperature-20 to 70°C (-4 to 158°F)Storage Temperature-40 to 85°C (-40 to 185°F)

    1x2 Blockless PLC Splitter in FTTH Solution

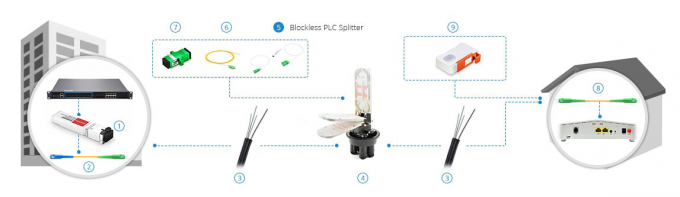

    Blockless PLC splitter can integrate multiple functions onto a single chip to significantly reduce size and cost. It is widely used in PON networks to realize optical signal power management. The following figure shows 1X2 blockless PLC fiber splitter interconnected with GPON OLT and ONT through fiber optic splice closure.

    Mini 900um Plc Splitter 1x2 , SC/APC Single Mode Fiber Splitter 0

    Company information:

    Our two manufacturing in China and Vietnam with capacity over 60000sqm production based, headquatered in Huizhou with branches in Hong Kong, Shenzhen, Munich and United States. We specialize in the manufacturing and create value to our partners through our fiber optic products and accessories range.

    Single Mode PVC G.657A1 SC/APC PLC Splitter 1x2Single Mode PVC G.657A1 SC/APC PLC Splitter 1x2Single Mode PVC G.657A1 SC/APC PLC Splitter 1x2

    FAQ:

    Q1. Can I have a sample order for this product?
    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


    Q2. What about the lead time?
    A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.


    Q3. Do you have any MOQ limit for sample order?
    A: Low MOQ, 1pc for sample checking is available


    Q4. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.


    Q5. How to proceed an order for the product?
    A: Firstly let us know your requirements or application.
    B. Secondly We quote according to your requirements or our suggestions.
    C. Thirdly customer confirms the samples and places deposit for formal order.
    D. Fourthly We arrange the production.
