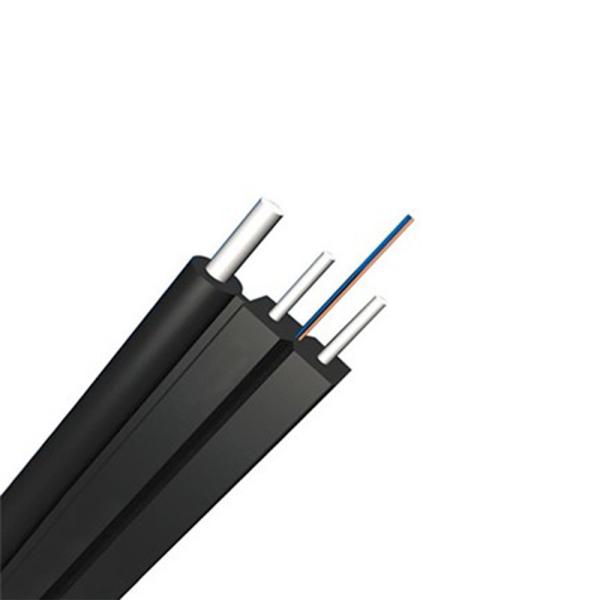

(GJYXFCH) Indoor/Outdoor self-supporting butterfly drop cable , the optical fiber unit is positioned in the centre. two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. a steel wire as the additional strength member is also applied. then the cable is completed with a black or color LSZH sheath.
1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
2.Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
3.Single steel wire or messengers as the additional strength member ensures good performance of tensile strength.
4.Simple structure, light weight and high practicability.
5.Novel flute design, easily strip and splice, simplify the installation and maintenance.
6.Low smoke, zero halogen and flame retardant sheath
Optical cable charateristics
1. Application
Adopted to outdoor level and vertical distribution.
2,Specification
Fiber Allocation Scheme
| Fiber number | Tube number | Fiber per tube | Fiber type |
| 1~4 | ---- | ---- | Single mode |
| Item | Description | |
| Fiber Counts | 1-4 cores | |
Strength Member | Material | Messenger Wire+ FRP/Steel wire |
| Dia (mm) | 1.2(Messenger Wire)+ 0.5(FRP) | |
Colored Coating Fiber | Dia(μm) | 250±15 |
| Color | Blue,Orange,Greem,Brown | |
Outer Jacket | Material | LSZH (PVC or Customer required) |
| Color | Black | |
Cable Mechanical characteristic
Item | Cable Dim (mm) | Weight (kg/km) | Allowable Tensile Strength(N) | Crush Load (N/100mm) | ||
| Long term | short term | Long term | short term | |||
| GJYXFCH-1 Xn | 5.3×2.0(±0.2) | 21 | 300 | 600 | 500 | 1000 |
| GJYXFCH-2 Xn | 5.3×2.0(±0.2) | 22 | 300 | 600 | 500 | 1000 |
| GJYXFCH-4 Xn | 5.3×2.0(±0.2) | 23 | 300 | 600 | 500 | 1000 |
| Min Bending Radius(mm) | Long term | 10 H | ||||
| Short term | 20 H | |||||
Temperature characteristic | Base on the working temperature range: Dwell time 8H / 2cycles. The variation on attenuation:SM≤0.5 dB/km；MM≤0.3 dB/km | |||||
Hight temperature and humidity ability | ≥500h,85℃/85%RH,No damage to the sheath. | |||||
| Installation Temperature range | -10 ~ +50℃ | |||||
Operation and transport temperature | -20 ~ +60℃ | |||||
NOTE : Xn indicates the selected fiber models
Requirement for Order
(1)Fiber sort: Single mode:G657
(2)Fiber brand: YOFC, Corning, Fiberhome,Fujikura,OFS etc.
(3)Jacket material: PVC,LSZH ( can be required).
(4)The fiber and tube color: according to stranded color, can be
required.
(5)Length of cable: generally is 2KM, can be required.
(6)Other requirement: can be negotiated.
Fiber optical Characteristic (after cable)
Fiber type | Attenuation | OFL bandwidth | Effective modal bandwidth | 10 Gb/s Link Length | |||
Conditions | 1310/1550nm | 850/1300nm | 850/ 1300nm | 850nm | 850nm | ||
| Typical | Maximum | Typical | Maximum | ||||
| Unit | dB/km | dB/km | dB/km | dB/km | MHz.km | MHz.km | m |
| G657A1 | / | 0.4/0.3 | / | / | / | / | / |
| G657A2 | / | 0.4/0.3 | / | / | / | / | / |
| G657B3 | / | 0.4/0.3 | / | / | / | / | / |
Cable marking and cable reel marking
Cable marking
The cable sheath shall be marked with white characters at intervals
of one meter with following information:
(1)Purchaser’s name
(2)Cable type
(3)Fiber type and counts
(4)Year of manufacture
(5)Length marking
Notice: cable mark is available if requested by customer.
Cable reel
Details given below shall be marked with a weather materials on
both outer sides of the reel flange :
(1)Cable type and fiber counts
(2)Length of cable in meters
(3)Year of manufacture
Notice: shipping mark is available if requested by customer.
Packing Informations
(1)Packing material: Wooden drum
(2)Packing length: standard length of cable shall be 2 km. Other
cable length is also available if required by customer
Our advantages
Our certificates
(1) ISO9002
(2) SGS, ROHS
(3) ULE329066
(4) REACH
Our advantages
(1)Professional cable manufacturer
(2)About 10 years experiences in cable industry
(3)MOQ just 1Km
(4)ISO, UL , ROSH,REACH...certifications
(5)Can be customized production of fiber optic cable
FAQ
1. We set up factories in China and Vietnam with 60,000 + SQM area
and 2,000 + employees , have big production capacity to guarantee
fast delivery and on-time shipment.
2. We have first-class production line and strict quality
management system.
3. We have professional team to provide comprehensive one-stop
service for you, Technical support is provided anytime by a team of
30 experienced engineers.
Q1: Where is your company and factory?
A1: Our headquarters is in Guangdong Province, China. Branches in
HongKong , Shenzhen, Germany, United States and Vietnam, We set up
factories in China and Vietnam. You are warmly welcome to visit us.
Q2: How many years experience in producing?
A2: More than 24 years,and We have more than 30+ engineers to
provide technical support for you
Q3: Can I get the sample?
A3: Sure, Sample is available any time
Q4: How is quality for your products?
A4: We have a strict and strong quality management system, each
production link has professional staff to check the quality. We
have obtained ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS
certificates.
Q5: Can I print my own logo?
A5: Sure, OEM is available.
|
|
