1×16 Fiber Optic Spliter

Ask Lasest Price
Brand Name :	XDK
Model Number :	XDK-PLC-2
Certification :	ISO9001, ISO14001, UL, CPR
Price :	negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	30000 units per month
Delivery Time :	3-5 working days

Add to Cart

Product Details
Company Profile

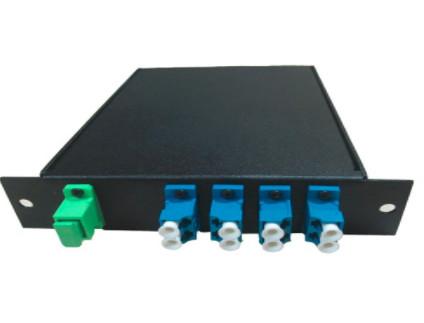

1×16 Fiber Optic Spliter

XDK supply PLC Optial Fiber Splitter with LGX Cassette LC SC FC ST connectors way 1/2×2 4 8 16

(PLC splitter) Planar lightwave circuit splitter, a type of optical power management device that is fabricated using silica optical waveguide technology. LGX cassette splitter has a strong metal box to house the PLC splitters. It can be used alone or be easily installed in standard fiber patch panel or fiber enclosure. The standard LGX mental box housing provides a plug-and-play method for integration in the network, which eliminates any risk during installation. No filed splicing or skilled personnel is required during deployment.

Features

Low insertion loss and low PDL
Exceptional reliability and stability
Standard LGX cassette design to be fit in 1RU and 4RU rack mount chassis
Modular structure, easy for operation, construction and maintenance
Convenient to carry out splitting on modules by existing cabling system and
Reduce network construction costs.
Factory pre-terminated, stable performance
Secure protective device for radius curvature of fibers

Application

CATV, LAN, WAN network
FTTX Systems
Telecommunication network
EPON/GPON
DWDM and CWDM Systems

Specification

Fiber Parameters

1×N PLC Splitter
Parameters	1×2	1×4	1×8	1×16
Operating Wavelength(nm)	1260~1650
Fiber Type	G657A1 or customer specified
Insertion Loss (dB) (P/S Grade)	≤3.8/4.0	≤7.1/7.3	≤10.2/10.5	≤13.5/13.7
Loss Uniformit(dB)	≤0.4	≤0.6	≤0.8	≤1.2
Polarization Dependent Loss(dB)	≤0.2	≤0.2	≤0.2	≤0.25
Return Loss(dB)(P/S Grade)	≥55/50	≥55/50	≥55/50	≥55/50
Directivity(dB)	≥55	≥55	≥55	≥55
Wavelength Dependent Loss(dB)	≤0.3	≤0.3	≤0.3	≤0.5
Temperature Stability(-40~85℃)(dB	) ≤0.4	≤0.4	≤0.4	≤0.5
Operating Temperature(℃)	-40~+85
Storage Temperature(℃)	-40~+85

2×N PLC Splitter
Parameters	2×2	2×4	2×8	2×16
Operating Wavelength(nm)	1260~1650
Fiber Type	G657A1 or Customer specified
Insertion Loss (dB) P/S Grade)	≤3.9/4/2	≤7.3/7.6	≤10.5/11	≤14.4/14.6
Loss Uniformity(dB)	≤0.6	≤1.0	≤1.2	≤1.5
Polarization Dependent Loss(dB)	≤0.2	≤0.2	≤0.2	≤0.3

Return Loss(dB)(P/S Grade)	≥55/50	≥55/50	≥55/50	≥55/50
Directivity(dB)	≥55	≥55	≥55	≥55
Wavelength Dependent Loss(dB)	≤0.3	≤0.4	≤0.5	≤0.5
Temperature Stability	≤0.5
(-4o ～ 85 ℃)(dB)	≤0.5
Operating Temperature (℃)	-40～85
Storage Temperature (℃)	-40～85
Max. Power(mW)	500

Notes:

All values specified are without connectors.
IL will increase 0.2dB when add one connector,Return Loss≥55dB(APC),≥50dB(UPC)
Customized service is available.
Connector and Adaptors : SC, LC or Other

Cassette Parameters

Item	Unit	Parameters
Dimension (LWD)	mm	L129 * W29 * D157
Material	/	Aluminum or Steel
Adaptor Type	/	SC LC FC or Customer specified
Colour	/	Black or White
Fiber Diameter	mm	0.9
