    Simplex 3.0mm Om2 Patch Cord , Sc Upc To Sc Upc Multimode Fiber Optic Cable

    Ask Lasest Price
    Brand Name : XDK
    Model Number : Fiber Optic Patch Cord SC/UPC-SC/UPC,OM2, Simplex
    Certification : ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5 million termination/month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Simplex 3.0mm Om2 Patch Cord , Sc Upc To Sc Upc Multimode Fiber Optic Cable

    Simplex 3.0mm Muiltmode OM2 SC/UPC-SC/UPC Fiber Optic Patch Cord


    Introduction of SC/UPC-SC/UPC Fiber Optic Patch Cord

    Our patch cord provides high reliability and flexibility for our customers in different industries. Our top-of-the-line fiber optic cable assemblies and stringent manufacturing process ensures the excellent optical performance for our patch cords with traceable data. All patchcords can be customized in length, fiber mode and connector types to suit every single customer requirement with our state-of-art production facilities.


    Features of SC/UPC-SC/UPC Fiber Optic Patch Cord

    1) Avalible in simplex, duplex connector options

    2) Quick-tum service for fast delivery

    3) TIA compliant color-coded connectors and boots

    4) Cable jaket and boots color-coded for easy ID of fiber

    5) Fiber options: OS2, OM1,OM3, and OM4

    6) 100% tested for insertion loss and return loss


    Specifications of SC/UPC-SC/UPC Fiber Optic Patch Cord

    Connector TypeSC/UPC to SC/UPCFiber CountSimplex
    Fiber ModeOM2 50/125um

    OFL Bandwidth

    (850/1300nm)

    500/500 MHz*km
    Insertion Loss≤0.3dBReturn Loss≥35dB

    Attenuation at 850/1300nm

    (Typical)

    3.5/1.5 dB/kmFerrule MaterialsCeramic
    Cable Diameter3.0mmStrength MemberAramid yarn
    Optical SourceLED Light

    Minimum Bend Radius

    (Short term/Long term)

    20D/10D
    Cable JacketLSZH or PVCCable ColourOrange
    Operating Temperature-20~70°CStorage Temperature-40~85°C

    Our certificates
    1) ISO9002
    2) SGS, ROHS
    3) ULE329066
    4) REACH


    Testing Lab

    NoDevice nameNoDevice name
    1Optical time domain reflectometer (OTDR)8GNZV Cable Torsion Testing Machine
    2Fiber Polarization Mode Dispersion9GQNV Cable Flexing Testing Machine
    3Fiber Dispersion ,Strain Tester10GJRV Cable Winding Testing Machine
    4High Low Temperature Test Chamber11GZDV Cable Vibration Testing Machine
    5Cable Impact Testing Machine12Cable Water Penetration Test
    6Cable Squash Tensile Testing Machine13Fusion Splicer
    7GWQV Cable Bending Tester14Cable Water Penetration Test Rig

    Our advantages of SC/UPC-SC/UPC Fiber Optic Patch Cord
    1) Professional cable manufacturer
    2) About 20 years experiences in cable industry
    3) MOQ just 1Km
    4) ISO, UL , ROSH,REACH...certifications
    5) Can be customized production of fiber optic cable

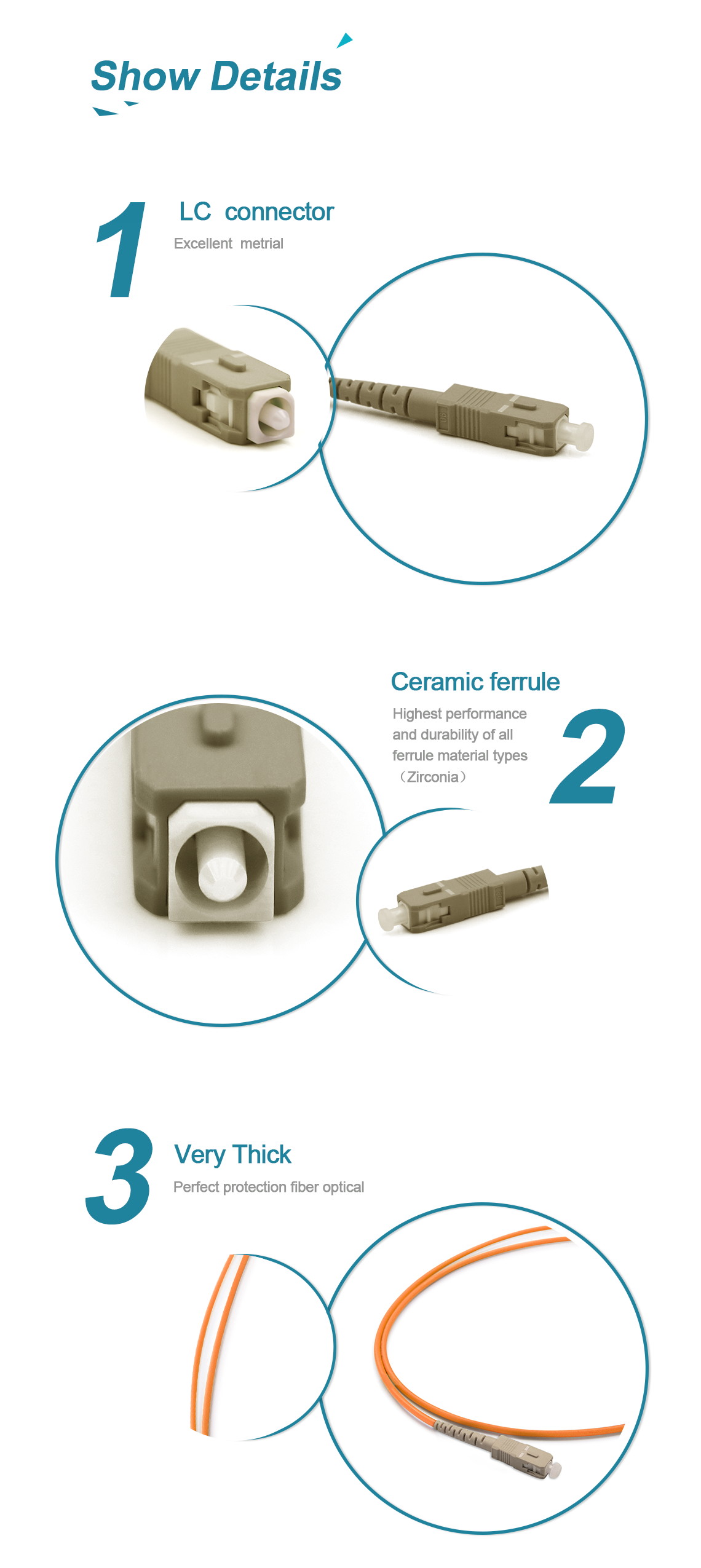

    Pictures of SC/UPC-SC/UPC Fiber Optic Patch Cord

    Quality Simplex 3.0mm Om2 Patch Cord , Sc Upc To Sc Upc Multimode Fiber Optic Cable for sale
