    XDK MPO Fiber Optic Loopback Adapter for Storage Area Network

    Ask Lasest Price
    Brand Name : XDK
    Model Number : MPO Loopback Adapter
    Certification : ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5 million termination/month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    XDK MPO Fiber Optic Loopback Adapter for Storage Area Network

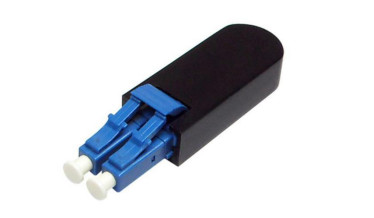

    Fiber Optic MPO Loopback Adapter,Black and Blue Color, used in Storage Area Network


    Description
    Designed for network diagnostics, testing system configurations, and device burn-in, the MPO/MTP/LC/SC loopback adaptor can form an optical link for segment by segment testing by creating a loop of signal from transmitter to receiver within one MTP/MPO plug. It is packaged in a rugged, compact housing, providing an effective way of testing the transmission capability and receiver sensitivity of network equipment, particularly for telecom and datacom requirements.


    Features

    1. MTP/MPO connector, polarity available
    2. Insertion loss type available in Standard, Elite / Low Loss
    3. MTP/MPO connector type available in Male, Female
    4. Customized loop length and polarity.ss.
    5. Improve and simplify fiber routing, decrease fiber management space

    Specification

    Fiber TypeSM(9/125um)MM(50/125um,62.5/125um)

    Polish

    UPCAPCUPC
    Insertion Loss (typical)MPO / MTP : Low Loss≤1.2dB, Standard Loss≤0.70dB
    LC/SC : Standard Loss≤0.60dB

    Return Loss

    ≥50dB≥60dB≥20dB
    3D(MPO/MTP)

    Fiber Height : 1000~3500nm

    Radius Long: 500mm min

    Radius Short: 50mm min
    Max Fiber Differential < 400nm

    Max Fiber Adj Diff < 200nm

    Ferrule Height:7.95mm min

    MM Core Dip:<100nm

    3D(LC/SC/FC/ST)

    Radius of Curvature :10-25mm(PC/UPC) ,5-12mm(APC) Apex offset : 0-50um
    High fiber : ±100 nm

    Angle:8±0.2°(APC)

    Repeatability

    1000 times typical change value ≤ 0.20dB

    Interchangeability

    ≤ 0.20dB
    MPO / MTP ConnectorMale / female
    Fiber Moder(optional)G652D, G657A, G657B, OM1, OM2, OM3, OM4
    Fiber count(optional)2~24 core
    Operating Temperature-20 ~ +70 ℃
    Storage Temperature-40 ~ +85 ℃

    Application

    1. For equipment self-testing and engineering
    2. Network diagnosing and testing
    3. Storage Area Network


    XDK MPO Fiber Optic Loopback Adapter for Storage Area NetworkXDK MPO Fiber Optic Loopback Adapter for Storage Area Network
