    Duplex Multimode OM1 Fiber Optic Patch Cable FC/UPC-FC/UPC

    Ask Lasest Price
    Brand Name : XDK
    Model Number : Fiber Optic Patch Cord FC/UPC-FC/UPC
    Certification : ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 5-8 work days
    Supply Ability : 5 million termination/month
    • Product Details
    • Company Profile

    Duplex Multimode OM1 Fiber Optic Patch Cable FC/UPC-FC/UPC


    Fiber Optic Patch Cord/ FC/UPC-FC/UPC/ Multimode OM1/Simplex /3.0mm/ LSZH/ PVC/Orange


    Introduction

    Fiber optic patch cords suited for equipment jumper cable, cross connects and work area connections. All patch 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards.

    Our top-of-the-line fiber optic cable assemblies and stringent manufacturing process ensures the excellent optical performance for our patch cords with traceable data. All patchcords can be customized in length, fiber mode and connector types to suit every single customer requirement with our state-of-art production facilities.

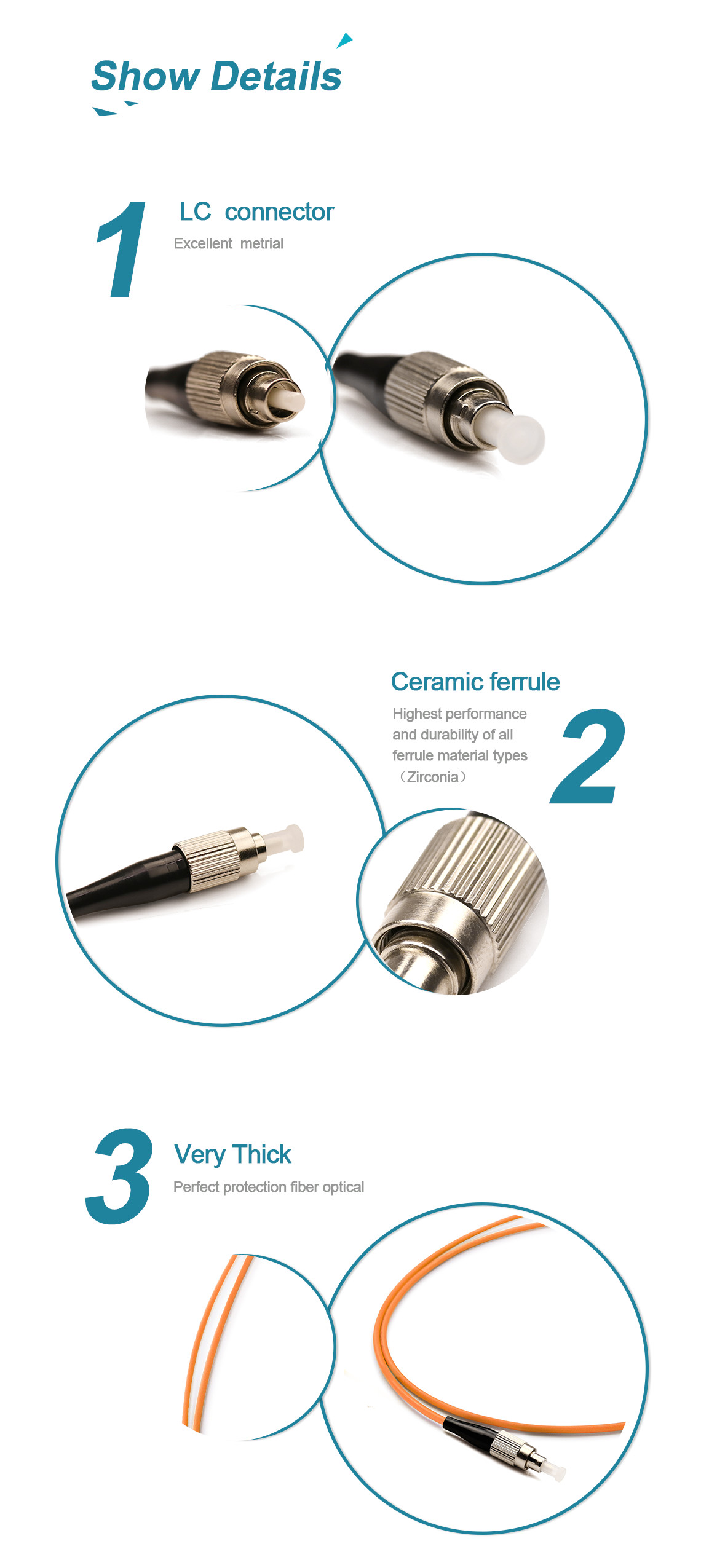

    Duplex Multimode OM1 Fiber Optic Patch Cable FC/UPC-FC/UPCDuplex Multimode OM1 Fiber Optic Patch Cable FC/UPC-FC/UPCDuplex Multimode OM1 Fiber Optic Patch Cable FC/UPC-FC/UPC


    Features

    1) Avalible in simplex, duplex connector options

    2) Quick-tum service for fast delivery

    3) TIA compliant color-coded connectors and boots

    4) Cable jaket and boots color-coded for easy ID of fiber

    5) Fiber options: OS2, OM1,OM3, and OM4

    6) 100% tested for insertion loss and return loss

    7) Other jacket colors available as custom with MOQ and lead time applicable


    Specification

    Connector TypeFC/UPC - FC/UPCFiber CountSimplex
    Fiber ModeOM1 62.5/125um

    OFL Bandwidth

    (850/1300nm)

    500/500 MHz*km
    Insertion Loss≤0.3dBReturn Loss≥35dB

    Attenuation at 850/1300nm

    (Typical)

    3.5/1.5 dB/kmFerrule MaterialCeramic
    Cable Diameter3.0mmStrength MemberAramid yarn
    Optical SourceLED Light

    Minimum Bend Radius

    (Short term/Long term)

    20D/10D
    Operating Temperature-20~70°CStorage Temperature-40~85°C

    Our certificates
    1) ISO9002
    2) SGS, ROHS
    3) ULE329066
    4) REACH
