    Colorful Multimode Om1 Fiber Cable Fc Upc Fc Upc For FTTX Network

    Ask Lasest Price
    Brand Name : XDK
    Model Number : Fiber Optic Patch Cord FC/UPC-FC/UPC
    Certification : ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5 million termination/month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Colorful Multimode Om1 Fiber Cable Fc Upc Fc Upc For FTTX Network

    Multimode OM1 FC/UPC-FC/UPC Fiber Optic Patch Cord with best price


    Introduction of Multimode OM1 FC/UPC-FC/UPC Fiber Optic Patch Cord

    Fiber optic patch cords suited for equipment jumper cable, cross connects and work area connections. All patch 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards. FC, SC, ST, LC Patch Cords are available in both multimode and single mode cable-types, in duplex and simplex versions.

    Our patch cord provides high reliability and flexibility for our customers in different industries.


    Features of Multimode OM1 FC/UPC-FC/UPC Fiber Optic Patch Cord

    1) Avalible in simplex, duplex connector options

    2) Quick-tum service for fast delivery

    3) TIA compliant color-coded connectors and boots

    4) Other jacket colors available as custom with MOQ and lead time applicable


    Specifications of Multimode OM1 FC/UPC-FC/UPC Fiber Optic Patch Cord

    Connector TypeFC/UPC to FC/UPCFiber CountSimplex
    Fiber ModeOM1 62.5/125um

    OFL Bandwidth

    (850/1300nm)

    500/500 MHz*km
    Insertion Loss≤0.3dBReturn Loss≥35dB

    Attenuation at 850/1300nm

    (Typical)

    3.5/1.5 dB/kmFerrule MaterialsCeramic
    Cable Diameter3.0mmStrength MemberAramid yarn
    Optical SourceLED Light

    Minimum Bend Radius

    (Short term/Long term)

    20D/10D
    Cable JacketLSZH or PVCCable ColourOrange
    Operating Temperature-20~70°CStorage Temperature-40~85°C

    Testing Lab

    NoDevice nameNoDevice name
    1Optical time domain reflectometer (OTDR)8GNZV Cable Torsion Testing Machine
    2Fiber Polarization Mode Dispersion9GQNV Cable Flexing Testing Machine
    3Fiber Dispersion ,Strain Tester10GJRV Cable Winding Testing Machine
    4High Low Temperature Test Chamber11GZDV Cable Vibration Testing Machine
    5Cable Impact Testing Machine12Cable Water Penetration Test
    6Cable Squash Tensile Testing Machine13Fusion Splicer
    7GWQV Cable Bending Tester14Cable Water Penetration Test Rig

    Our advantages of Multimode OM1 FC/UPC-FC/UPC Fiber Optic Patch Cord
    1) Professional cable manufacturer
    2) About 20 years experiences in cable industry
    3) MOQ just 1Km
    4) ISO, UL , ROSH,REACH...certifications
    5) Can be customized production of fiber optic cable


    Pictures of Multimode OM1 FC/UPC-FC/UPC Fiber Optic Patch Cord production line

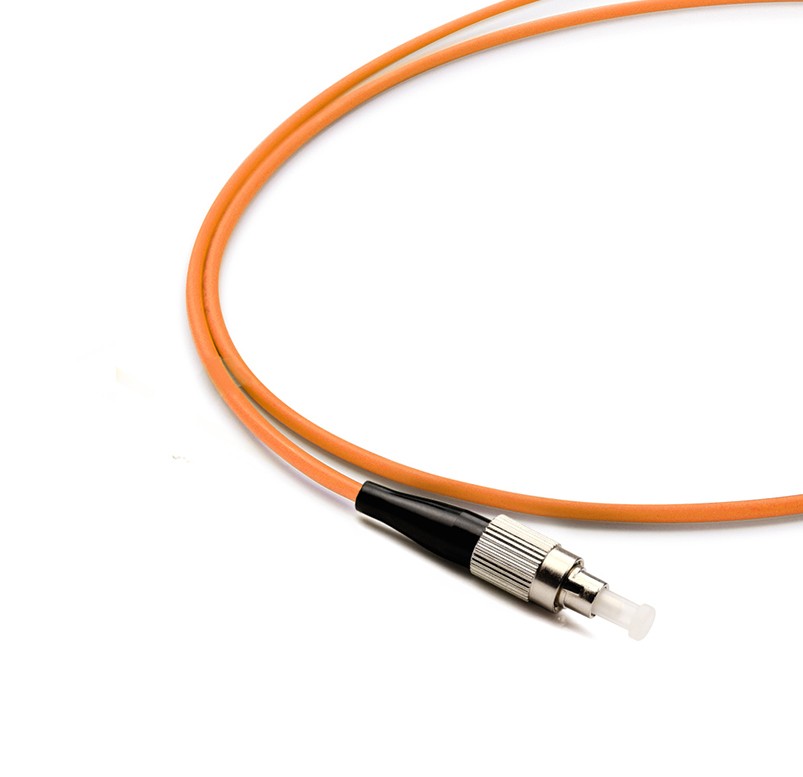

    Pictures of Multimode OM1 FC/UPC-FC/UPC Fiber Optic Patch Cord
