| Brand Name : | XDK |
| Model Number : | MTP PC- LC PC Truck Patch Cable for Date center 12core OM3 OM4 Aqua 3.0mm single jacket |
| Certification : | CPR, DCR,ECR,FCR,ROHS,ISO9001,UL |
| Price : | Negotiation |
| Payment Terms : | T/T D/P D/A |
| Supply Ability : | 5million termination per month |
| Delivery Time : | 7 working days |

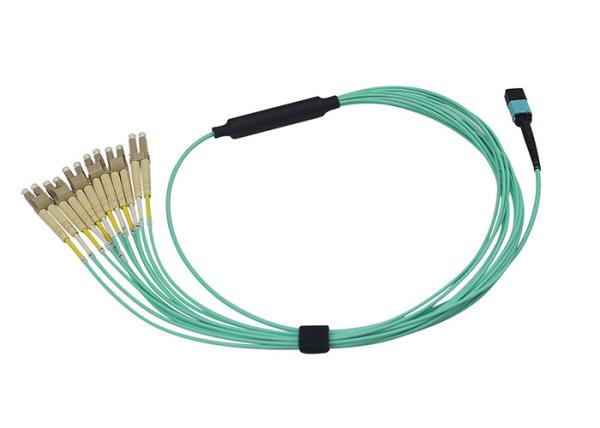

MTP PC- LC PC Truck Patch Cable for Date center 12core OM3 OM4 Aqua 3.0mm single jacket or 4.6mm double jacket
Performance:
| END A | END B | ||||
| Connector Type | MTP/MPO | MTP/MPO | LC | LC Uniboot | SC |
| Polarity | Polarity A, Polarity B, Polarity C | ||||
| IL(MTP/MPO) | Standard ≤0.5 dB Ave ≤0.3dB | ||||
| IL(MTP/MPO) | Elite: ≤0.35dB Ave: ≤0.2dB | ||||
| IL(LC/SC) | Standard ≤0.25dB Low Loss : ≤0.15dB | ||||
| RL | SM:≥60dB MM: ≥20dB | ||||
| Tester Brand | EXFO & JGR | ||||
| Repeatability | ≤0.2dB | ||||
| Interchangeability | ≤0.2dB | ||||
| Mating | 1000 Times | ||||
| Opterating Temperature | -20℃ ~ +70℃ | ||||
| 3D Interferometer | Fiber Height: 1000nm~3500nm Radius Long: 500mm min Radius Short: 50mm min Ferrule Height: 7.95mm min MM Core Dip: <100nm | ||||
Test:
Features:
- Ulitize MPO/MTP connectors
- Inner: Ceramic Ferrule
- Available in Elite insertion loss and standarad insertion loss.
- Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.
- They use a simple push-pull latching mechanism for easy and intuitive insertion and removal.
- It provides up to 8, 12, 16, 24 times the density, thereby offering savings in circuit card and rack space.
- Available in OS1/2, OM1, OM2, OM3 and OM4, OM5
- Telcordia’s GR-326-Core, IEC Standard
- Green Production, RoHS Standard
- Interface polished type has PC, UPC and APC
- Support use in attaching directly to 40/100G transceivers
- 100% factory tested, with test results included for each assembly
-8 12 and 24 fiber connector terminations and assemblies
-Insertion loss type available in Standard, Elite/Low Loss
-MPO/MTP connector type available in Male, Female, Male to Female
-MPO/ MTP assembled with 0. 9mm cable to single-fiber connectors
-Improve and simplify fiber routing, decrease fiber management
space
Application
- Metro
- CATV
- Passive fiber optic networks
- Builing communication center
- Bank Data center
- Communication center rooms
- FTTH (Fiber to The Home)
- FTTA (Fiber to the attena)
- LAN (Local Area Network)
- FOS (fiber optic sensor)
- Fiber Optic Communication System
- Optical fiber connected and transmitted equipment
- Defense combat readiness

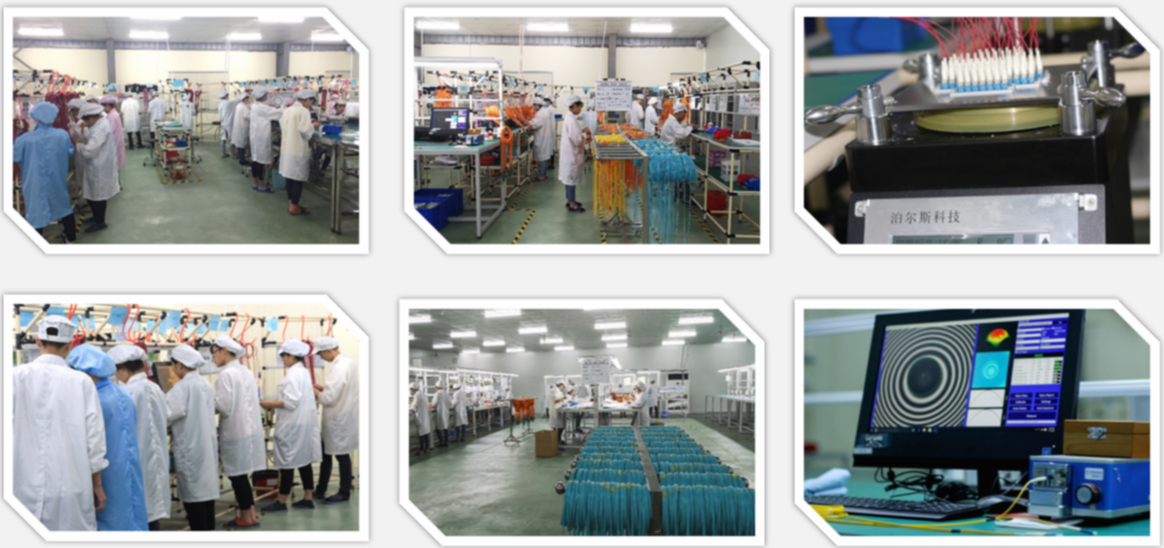

Our production line:
Packing:
Production capacity:
|
|
