    RoHS Compliant Compact Free Space Optical Isolator

    Ask Lasest Price
    Brand Name : XDK
    Model Number : Free Space Isolator
    Certification : ROSH,REACH
    Payment Terms : T/T
    Supply Ability : 10000 per month
    Delivery Time : 3-7 days
    • Product Details
    • Company Profile

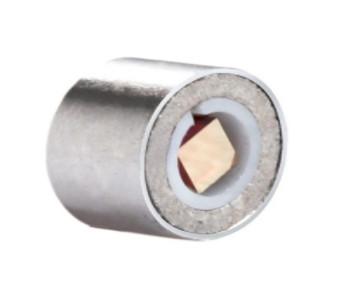

    RoHS Compliant Compact Free Space Optical Isolator

    Free Space Isolator Optical Transmitter Transceiver Compact Size Isolator Metal


    Description

    Free Space Isolator (FSI) utilizes Faraday effect of Magneto optical crystal. It guides optical light in one direction and eliminates back reflection and back scattering in the reverse direction at any polarization sate.The unique manufacturing process and optical path epoxy-free design enhance the device's high power handling capability. The devices are characterized with high performance, high reliability and low cost.


    Features

    1. High Isolation,High reliability
    2. Low Insertion Loss
    3. Polarization Dependent
    4. Compact Size
    5. RoHS compliant

    Specification

    ParameterSingleDual
    Center Wavelength1310nm,1550nm
    Typical Isolation (at 23℃)Min40dB60dB
    Isolation (at 23℃)Min38dB55dB
    Insertion LossTypical0.20dB0.40dB
    Max0.30dB0.40dB
    Clear ApertureΦ 0.8nm or customized
    Optical PowerMax500mW
    Operating Temperature-20℃ to +85℃
    Storage Temperature-40℃ to +85℃

    Application

    1. Optical transmitter & Transceivers
    2. Laser diode package
