MTP 24 Fiber MTP Cable Singlemode fiber optic cable Male to Female MTP- MTP fiber breakout cable
MTP® connectors have answered the call for more bandwidth and more
space efficiency. This MTP to MTP Single-mode APC Fiber Optic Cable
Assembly has many unique features that are only available when
purchasing through Fibertronics.

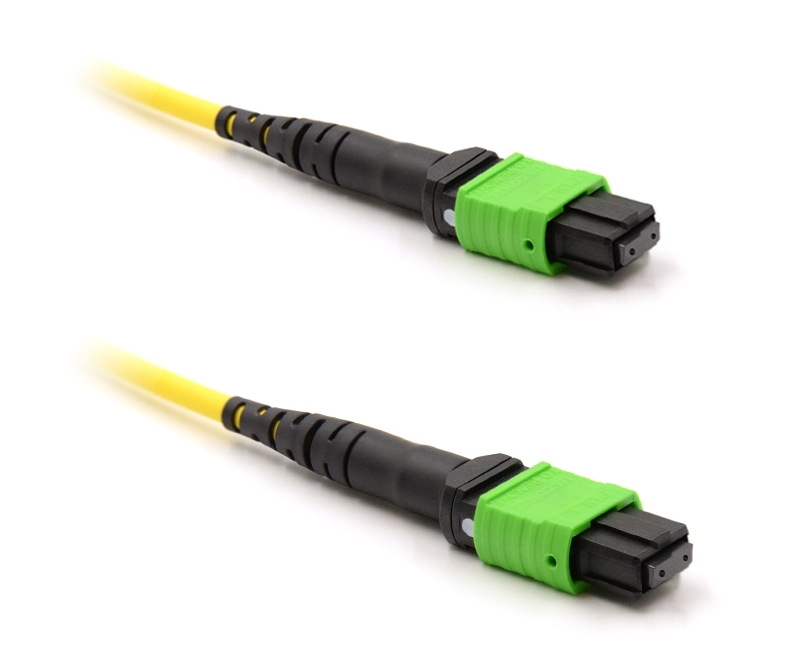

Corning® SMF-28e+® Optical Fiber, Single-mode, OS2, 9/125, ONFP,
Plenum (OFNP), Yellow, 3mm Round, Microdistribution cable. Green
body MTP connector. (Jacketed Ribbon or Bare Cable is optional)
Reducing cable congestion in constrained spaces is an important
factor in designing fiber systems for data centers and large
enterprise equipment rooms and data centers. Network designers turn
to multi-fiber MTP/MPO cabling to overcome this challenge. Ensuring
correct polarity across the system becomes more complex with higher
data rates.
TIA-568 standard has approved 3 methods for configuring system
polarity in multi-fiber arrays – Methods A, B and C.
Performance:
| Length | 2M |
| Fiber Count | 24 Fiber |
| Mode | Single-mode, OS2, 9/125 |
| Type | Male - Female |
| Configuration | 24F, 1-13 |
Benefits:
1. Reduced Insertion Loss by up to 50%
2. High Durability
3. High Temperature Stability
4. Good Exchangeability
| Polarity | Polarity A, Polarity B, Polarity C | ||||
| IL(MTP/MPO) | Standard ≤0.5 dB Ave ≤0.3dB | ||||
| IL(MTP/MPO) | Elite: ≤0.35dB Ave: ≤0.2dB | ||||
| IL(LC/SC) | Standard ≤0.25dB Low Loss : ≤0.15dB | ||||
| RL | SM:≥60dB MM: ≥20dB | ||||
| Repeatability | ≤0.2dB | ||||
| Interchangeability | ≤0.2dB | ||||
| Mating | 1000 Times | ||||
| Opterating Temperature | -20℃ ~ +70℃ | ||||
| 3D Interferometer | Fiber Height: 1000nm~3500nm | ||||
Test:
Features:
- Ulitize MPO/MTP connectors
- Inner: Ceramic Ferrule
- Available in Elite insertion loss and standarad insertion loss.
- Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.
- They use a simple push-pull latching mechanism for easy and intuitive insertion and removal.
- It provides up to 8, 12, 16, 24 times the density, thereby offering savings in circuit card and rack space.
- Available in OS1/2, OM1, OM2, OM3 and OM4, OM5
- Telcordia’s GR-326-Core, IEC Standard
- Green Production, RoHS Standard
- Interface polished type has PC, UPC and APC
- Support use in attaching directly to 40/100G transceivers
- 100% factory tested, with test results included for each assembly
Application
- Metro
- CATV
- Passive fiber optic networks
- Builing communication center
- Bank Data center
- Communication center rooms
- FTTH (Fiber to The Home)
- FTTA (Fiber to the attena)
- LAN (Local Area Network)
- FOS (fiber optic sensor)
- Fiber Optic Communication System
- Optical fiber connected and transmitted equipment
- Defense combat readiness
Packing:
|
|
