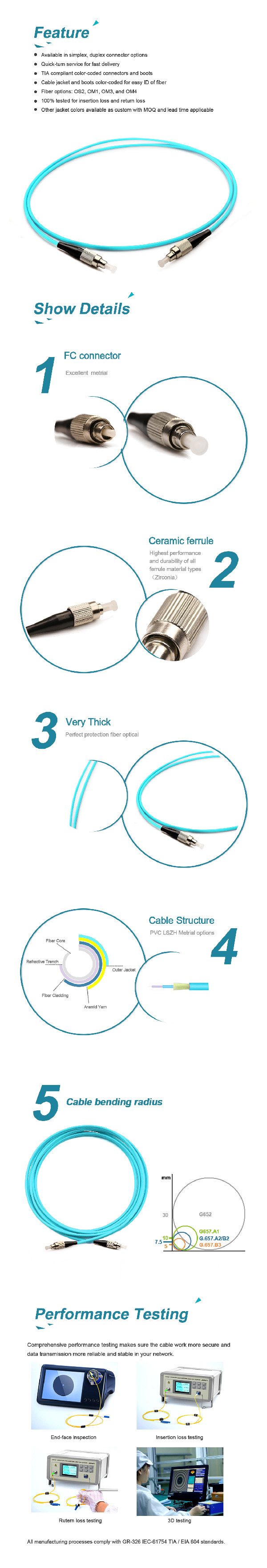

Communication Cable Sc APC Upc Sm Sx Fiber Optic Patch Cord for FTTH
Descriptions:
XDK'S patch cords are manufactured using Corning or YOFC optical
fiber and are 100% factory tested to ensure
performance to TIA/EIA standards.
Hybrid patch cord are available in both multimode (62.5/125µm and
50/125µm)and single mode(9/125µm) cable-types,
in duplex and simplex versions.
Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP
Polishing Options: PC/UPC/APC
Fiber Cable Options: OS2(9/125) OM1(62.5/125) OM2 OM3 OM4 OM5
Color Options: Yellow, Orange, Aqua, Purple, Pink, White, Black
Length Options: 0.5 1m, 2m, 3m 5m, 10m
Jacket: PVC, LSZH, OFNR
| Parameter | FC, LC,SC, ST, MU, D4, DIN4 | MTRJ | E2000 | |||||||
| SM | MM | SM | MM | SM | ||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | APC | ||
| Insertion loss(typical) | ≤0.2 | ≤0.2 | ≤0.25 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.2 | ≤0.3 | |
| Return loss(dB) | ≥45 | ≥50 | ≥60 | ≥35 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 | |
| Exchangeability(dB) | ≤0.2 | |||||||||
| Vibration(dB) | ≤0.2 | |||||||||
| Operating temperature(℃) | -40~75 | |||||||||
| Storage temperature(℃) | -45~85 | |||||||||
| Cable diameter(mm) | 3.0mm, 2.0mm, 0.9mm(customizes) | |||||||||
| Fiber Type | 9/125 SMF-28 (Singlemode) OS2 OS1 (G652D, G657A1, G657A2, G657B1, G657B2, G657B3...) | |||||||||
| OM2, (50/125), OM1(62.5/125) (Multimode) | ||||||||||
| OM3 (50/125), (Multimode) , 10G 25G 40G | ||||||||||
| OM4 OM5 (50/125), (Multi Mode), 40G 100G 200G... | ||||||||||
| Connector Options: | FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP | |||||||||
| Polishing Options: | PC/UPC/APC | |||||||||
| Jacket Material: | PVC(typical), LSZH, OFNR….. | |||||||||
| Color Options: | Yellow, Orange, Aqua, Purple, Pink, White, Black | |||||||||
| Length Options: | 0.5 1m, 2m, 3m 5m, 10m…..c | |||||||||
Our advantages
1) Professional cable manufacturer
2) About 20 years experiences in cable industry
3) MOQ just 1Km
4) ISO, UL , ROSH,REACH...certifications
5) Can be customized production of fiber optic cable
|
|
