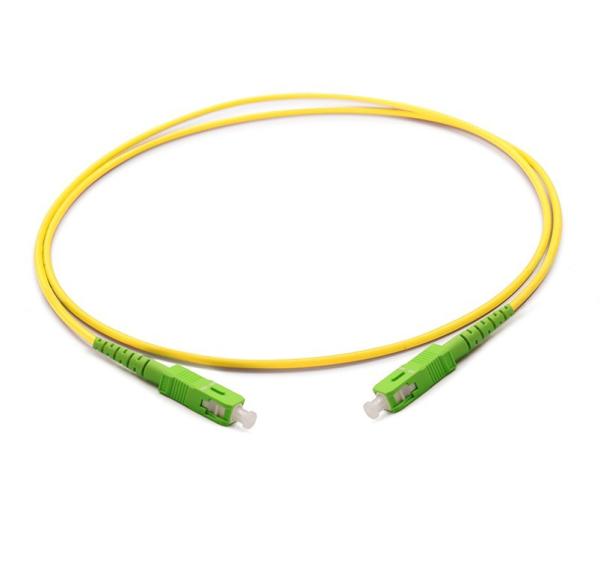

    G652D Fiber Optic Patch Cable

    Ask Lasest Price
    Brand Name : XDK
    Model Number : Fiber Optic Patch Cord SC/APC-SC/APC,G652D, Simplex
    Certification : ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 5-8 work days
    Supply Ability : 5 million termination/month
    • Product Details
    • Company Profile

    G652D Fiber Optic Patch Cable

    Fiber Optic Patch Cord/SC/APC-SC/APC Singlemode G652D/ Simplex/3.0mm/ LSZH/PVC/ Yellow


    Features

    1) Avalible in simplex, duplex connector options

    2) Quick-tum service for fast delivery

    3) TIA compliant color-coded connectors and boots

    4) Cable jaket and boots color-coded for easy ID of fiber

    5) Insertion loss and return loss are 100% tested

    6) Other jacket colors available as custom with MOQ and lead time applicable

    G652D Fiber Optic Patch CableG652D Fiber Optic Patch CableG652D Fiber Optic Patch Cable

    Introduction

    Fiber optic patch cords suited for equipment jumper cable, cross connects and work area connections. All patch 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards.

    Our patch cord provides high reliability and flexibility for our customers in different industries. All patchcords can be customized in length, fiber mode and connector types to suit every single customer requirement with our state-of-art production facilities.


    Specification

    Connector TypeSC/APC-SC/APCFiber CountSimplex
    Fiber ModeG652D 9/125umWorking Wavelength1260~1625nm
    Insertion Loss≤0.3dBReturn Loss≥60dB

    Attenuation at 1310/1550nm

    (Typical)

    0.36/0.22 dB/kmFerrule MaterialCeramic
    Cable Diameter3.0mmStrength MemberAramid yarn

    Minimum Bend Radius

    (Long term)

    10D

    Minimum Bend Radius

    (Short term)

    20D
    Cable JacketPVC or LSZHCable ColourYellow
    Operating Temperature-20~70°CStorage Temperature-40~85°C

    Our certificates
    1) ISO9002
    2) SGS, ROHS
    3) ULE329066
    4) REACH
