Brand Name : | XDK |
Model Number : | Fiber Optic Patch Cord LC/UPC-LC/UPC,Muiltmode, OM2, Simplex |
Certification : | ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS |
Price : | negotiable |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Delivery Time : | 5-8 work days |
Supply Ability : | 5 million termination/month |
Fiber Optic Patch Cord/LC/UPC-LC/UPC Muiltmode OM2/ Simplex/3.0mm/ LSZH/Orange
Introduction
Fiber optic patch cords suited for equipment jumper cable, cross connects and work area connections. All patch 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards.
Our patch cord provides high reliability and flexibility for our customers in different industries. Our Company offers customized service. All patchcords can be customized in length, fiber mode and connector types to suit every single customer requirement with our state-of-art production facilities.
Features
1) Avalible in simplex, duplex connector options
2) Good lead time services
3) TIA compliant color-coded connectors and boots
4) Cable jaket and boots color-coded for easy ID of fiber
5) Fiber options: OS2, OM1,OM3, and OM4
6) Insertion loss and return loss are 100% tested
7) Other jacket colors available as custom with MOQ and lead time applicable
Specification
Connector Type | LC/UPC - LC/UPC | Fiber Count | Simplex |
Fiber Mode | OM2 50/125um | OFL Bandwidth (850/1300nm) | 500/500 MHz*km |
Insertion Loss | ≤0.3dB | Return Loss | ≥35dB |
Attenuation at 850/1300nm (Typical) | 3.5/1.5 dB/km | Ferrule Materials | Ceramic |

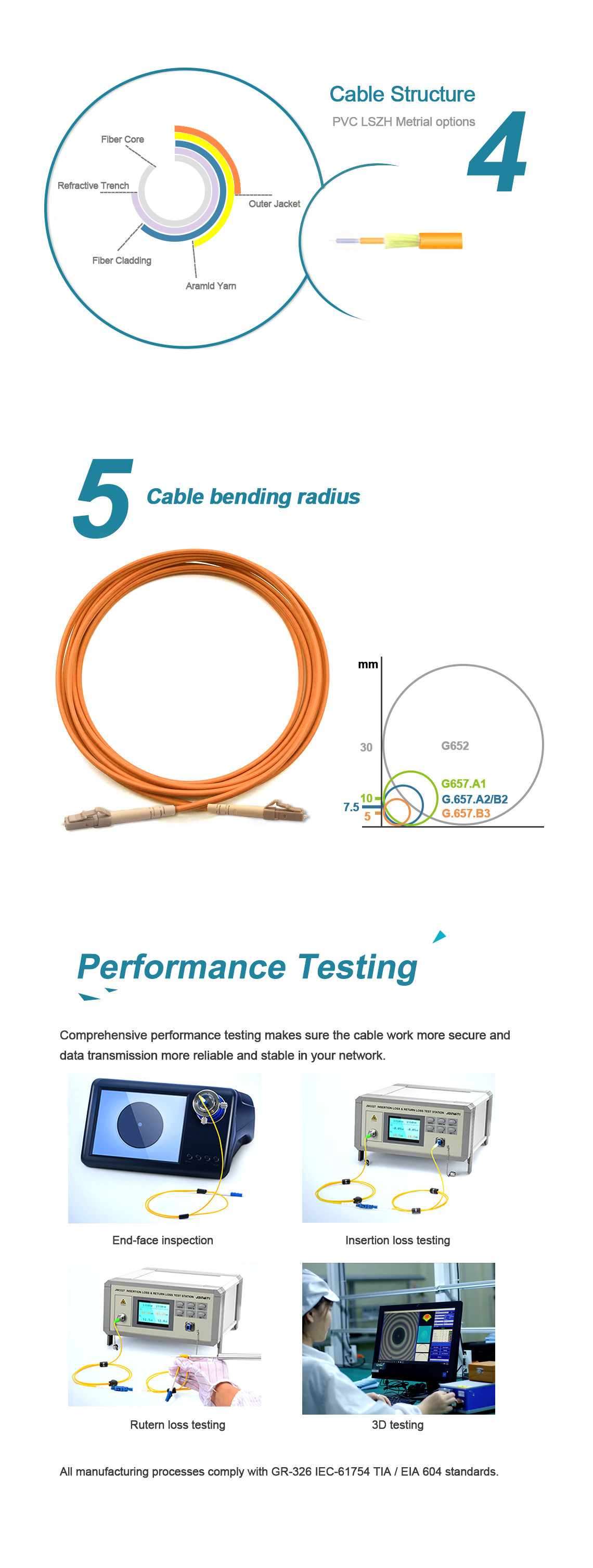

Cable Diameter | 3.0mm | Strength Member | Aramid yarn |
Optical Source | LED Light | Minimum Bend Radius (Short term/Long term) | 20D/10D |
Operating Temperature | -20~70°C | Storage Temperature | -40~85°C |
Our certificates
1) ISO9002
2) SGS, ROHS
3) ULE329066
4) REACH
![]() |
