    PLC Fiber Optic Spliter 1x16 1U 19" Rack Mount SC/APC Singlemode For FTTH

    Ask Lasest Price
    Brand Name : XDK
    Model Number : XDK-PLC-B
    Certification : ISO9001, ISO14001, UL, CPR
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30000 units per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    PLC Fiber Optic Spliter 1x16 1U 19" Rack Mount SC/APC Singlemode For FTTH

    XDK supply 1x16 PLC Fiber Splitter, 1U 19" Rack Mount, SC/APC, Singlemode for FTTH
    1×16 Fiber PLC Splitter, 1U Rack Mount Type, Singlemode
    Product Specification
    Package StyleRack MountConfiguration Type1x16
    Fiber TypeSinglemode G.657A1Connector TypeSC/APC
    Insertion Loss≤13.7dBReturn Loss≥55dB
    Loss Uniformity≤1.2dBDirectivity≥55dB
    Polarization Dependent Loss(PDL)≤0.3dBTemperature Dependent Loss≤0.5dB
    Wavelength Dependent Loss≤0.5dBOperating Bandwidth1260~1650nm
    Split Ratio50/50Operating Temperature-40 to 85°C (-40 to 185°F)
    Storage Temperature-40 to 85°C (-40 to 185°F)Dimensions (HxWxD)1.73"x19.00"x9.84" (44x482.6x250mm)

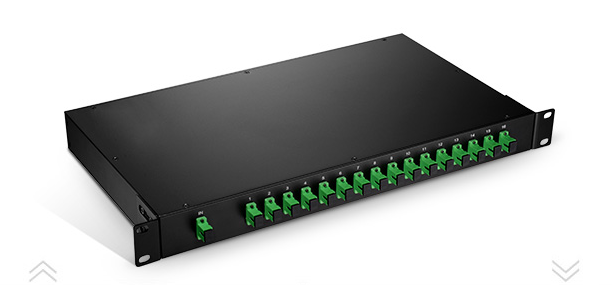

    1U Rack Mount Type PLC Splitter
    • 1x16 PLC splitter, SC/APC connector
    • Good channel-to-channel uniformity
    • High polarization extinction ratio


    Perfect Details of 1U Rack Mount Type PLC Splitter


    Simple Mounting and Easy Connection

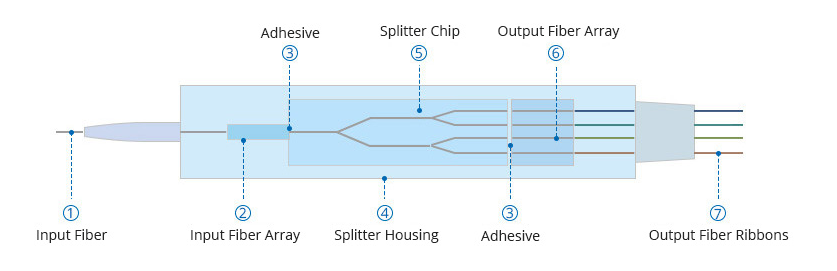

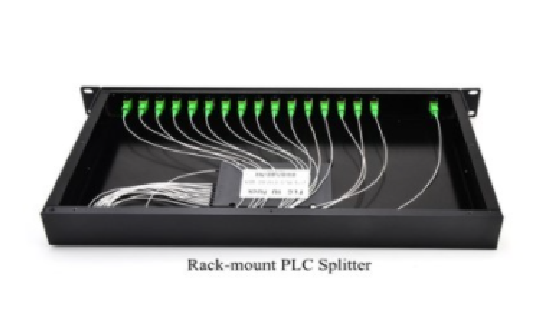

    Loaded with a pigtailed ABS module, can be easily mounted in cabinet for uniform optical signal distribution
