    72core OM3 OM4 PC- PC MTP MPO Fiber Cable For Date Center Aqua Dobule Jacket

    Ask Lasest Price
    Brand Name : XDK
    Model Number : MTP PC- MTP PC Truck Patch Cable For Date Center 72core OM3 OM4 Aqua
    Certification : CPR, DCR,ECR,FCR,ROHS,ISO9001,UL
    Price : Negotiation
    Payment Terms : T/T D/P D/A
    Supply Ability : 5million termination per month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    72core OM3 OM4 PC- PC MTP MPO Fiber Cable For Date Center Aqua Dobule Jacket

    MTP PC- MTP PC Truck Patch Cable For Date Center 72core OM3 OM4 Aqua Dobule Jacket


    Performance:

    END AEND B
    Connector TypeMTP/MPOMTP/MPOLCLC UnibootSC
    PolarityPolarity A, Polarity B, Polarity C
    IL(MTP/MPO)Standard ≤0.5 dB Ave ≤0.3dB
    IL(MTP/MPO)Elite: ≤0.35dB Ave: ≤0.2dB
    IL(LC/SC)Standard ≤0.25dB Low Loss : ≤0.15dB
    RLSM:≥60dB MM: ≥20dB
    Tester BrandEXFO & JGR
    Repeatability≤0.2dB
    Interchangeability≤0.2dB
    Mating1000 Times
    Opterating Temperature-20℃ ~ +70℃
    3D Interferometer

    Fiber Height: 1000nm~3500nm
    Radius Long: 500mm

    min Radius Short: 50mm

    min Ferrule Height: 7.95mm min
    MM Core Dip: <100nm


    Test:

    MPO MTP Truck Patch Cable for Date center 12core 24core 144core 3.0mm single jacket or 4.6mm double jacket 0
    Features:

    - Ulitize MPO/MTP connectors

    - Inner: Ceramic Ferrule

    - Available in Elite insertion loss and standarad insertion loss.

    - Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.

    - They use a simple push-pull latching mechanism for easy and intuitive insertion and removal.

    - It provides up to 8, 12, 16, 24 times the density, thereby offering savings in circuit card and rack space.

    - Available in OS1/2, OM1, OM2, OM3 and OM4, OM5

    - Telcordia’s GR-326-Core, IEC Standard
    - Green Production, RoHS Standard

    - Interface polished type has PC, UPC and APC

    - Support use in attaching directly to 40/100G transceivers

    - 100% factory tested, with test results included for each assembly

    OEM/ODM Service:
    - If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

    Application:

    - Metro

    - CATV

    - Passive fiber optic networks

    - Builing communication center

    - Bank Data center

    - Communication center rooms
    - FTTH (Fiber to The Home)

    - FTTA (Fiber to the attena)
    - LAN (Local Area Network)
    - FOS (fiber optic sensor)
    - Fiber Optic Communication System
    - Optical fiber connected and transmitted equipment

    - Defense combat readiness

    Notices:

    ①Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA

    ②Ferrule End-face: PC, UPC, APC

    ③Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)

    ④Fiber Quantity: 4 core, 8 core, 12 core, 24 core

    ⑤Cable Length: 1, 2, 3 meter or customized

    ⑥ Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum

    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
    - Standard export sea port: Shenzhen
    - Standard export airport: Shenzhen

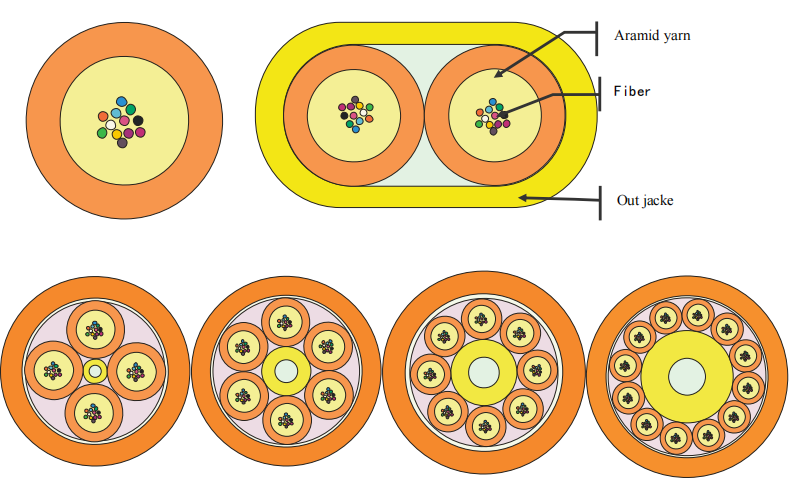

    Cable Spec:


    Quality 72core OM3 OM4 PC- PC MTP MPO Fiber Cable For Date Center Aqua Dobule Jacket for sale
