| Brand Name : | XDK |
| Model Number : | fiber optic pigtail connector |
| Certification : | CPR, DCR,ECR,FCR,ROHS,ISO9001,UL |
| Price : | Negotiation |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 5million termination per month |
| Delivery Time : | 7 Working day |

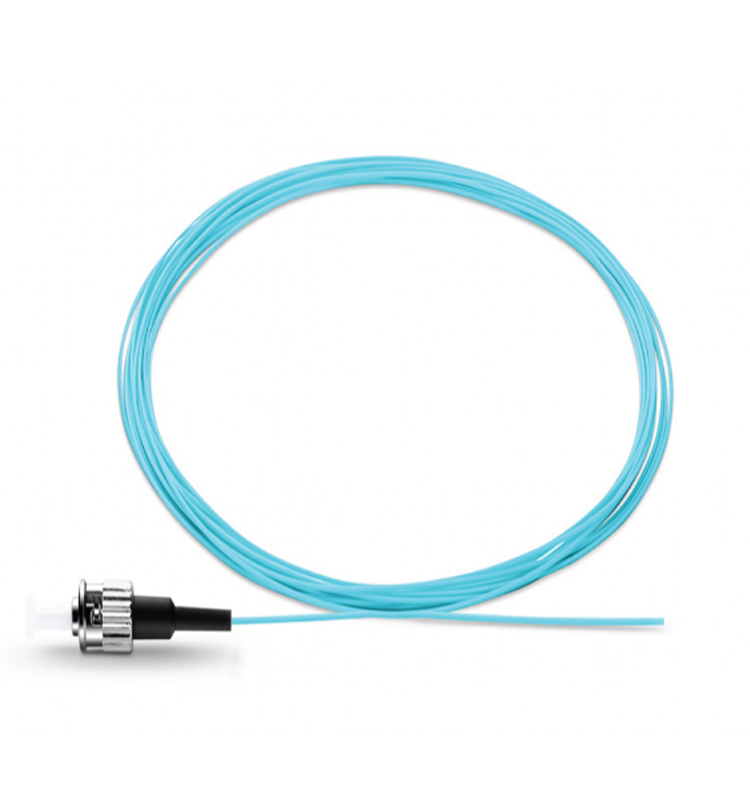

multi mode st fc sc lc pc om1 om2 om3 om5 om4 fiber optic pigtail connector
Fiber Optic Pigtail is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Pigtail series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
Features:
(1) Ceramic Ferrule;
(2) High return loss;
(3) Low insertion loss;
(4) Good repeatability and and exchangeability;
(5) Excellent Polished and 100% tested;
(6) Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.
Applications:
Local Area Network (LAN)
Data communication network
Telecommunication optical transmission network
Optical access network(OAN)
Active device termination
Fiber optics data transmission(FODT)
Test Equipment
CATV
| Item | SM(Single Mode) | MM(Multimode) | |||
| Fiber Cable Type | G652D/G655/G657A1/G657A2/G657B | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| Cable OD (mm) | 0.9/2.0/3.0/Customized | ||||
| Endface Type | PC | UPC | APC | UPC | UPC |
| Typical Insertion Loss (dB) | <0.3 | <0.3 | <0.2 | <0.1 | <0.1 |
| Return Loss (dB) | >50 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) | -40~+80 | ||||
|
|
