FTTX/FTTH/Indoor/Outdoor Self-Supporting Butterfly Drop Cable/LSZH/Black/Water Blocking/FRP/

Description

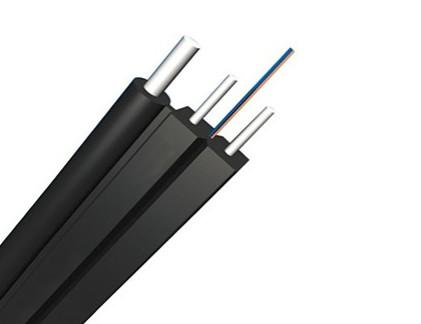

(GJYXFCH) Indoor/Outdoor self-supporting butterfly drop cable , the optical fiber unit is positioned in the centre. two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. a steel wire as the additional strength member is also applied. then the cable is completed with a black or color LSZH sheath.

Features
1) Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
2) Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
3) Single steel wire or messengers as the additional strength member ensures good performance of tensile strength
4) Simple structure, light weight and high practicability
5) Novel flute design, easily strip and splice, simplify the installation and maintenance
6) Low smoke, zero halogen and flame retardant sheath

Application
1) Adopted to outdoor level and vertical distribution
2) Suitable for connect with communication equipment
3) Long distance and local area network communication

Specification
1) Fiber Allocation Scheme

Requirement for Order
1) Fiber sort: Single mode: G657
2) Fiber brand: YOFC, Corning, Fiberhome,Fujikura,OFS etc.
3) Jacket material: PVC,LSZH ( can be required).
4) The fiber and tube color: according to stranded color, can be required.
5) Length of cable: generally is 2KM, can be required.
6) Other requirement: can be negotiated.

Packing Informations
1) Packing material: Wooden drum
2) Packing length: standard length of cable shall be 2 km. Other cable length is also available if required by customer

Our certificates
1) ISO9002
2) SGS, ROHS
3) ULE329066
4) REACH

Testing Lab

Fiber Optic Cable Mechanical Performance Testing Laboratory
1) Main Testing Type: Precision Test and Mechanical Test.
2) Precision Testing Machine: EXFO OTDR, EG&G PMD-440,CD-400.
3) Mechanical Performance Testing : Temperature, Impact, Tensile, Bending, Torsion, Flexing, Winding, Vibration, Water Penetration, Fusion Splicer, Water Penetration.

Our advantages
1) Professional cable manufacturer
2) About 20 years experiences in cable industry
3) MOQ just 1Km
4) ISO, UL , ROSH,REACH...certifications
5) Can be customized production of fiber optic cable

About XDK

Founded in August 1998, XDK Communication Equipment Co., Ltd. is an verified national Hi-Tech enterprise, headquartered in Huizhou with branches in Hong Kong, Shenzhen, Munich and United States. We specialize in the manufacturing and create value to our partners through our fiber optic products and accessories range.

Our Certificates

XDK is one of the industry leaders in research and development filed, we focus on delivering high quality customer service and are accredited with ISO9001. In addition, we also obtain certifications of ISO14001 and the Occupational Health and Safety Assessment Series18001.

R&D Capabilities
XDK offers a wide range of highly competitive active and passive fiber optics products. A strong research and development team delivers our customers with high performing products, while our post-sales team provides comprehensive support. Both services are designed to provide our customers with excellent service, fast delivery and support. All our products are qualified with the Network Access License, issued by the Ministry of Industry and Information Technology of the People's Republic of China.

Our Advantages
Our passive products are distinguished by our large capacity and high-end products. In terms of production capacity, XDK has an absolute an advantage over our competitors and a key player in the field of passive product manufacturing. Monthly production capacity is currently over 6 million terminations with undergoing plans for expansion. In order to maintain market competitiveness, XDK offers a broad range of high-end and customized products, such MTP & MPO.

Possessing the following strengths and characteristics, XDK has achieved a dominant position in both domestic and international markets. We have a strong technical & QC team with over 10 years extensive experience and highly competent employee base over 2000 employees. We have over 60,000 square meters modern manufacturing plant , assured customer satisfaction, products quality and reliability through approvals from CE, FCC and ROHS, whilst maintaining competitive prices.

Size & Scale

We are big enough for your biggest order. From our 60,000 sqm production workshop in China and Vietnam, to our subsidiaries and locations in  China, US, Germany and Vietnam, we have inventory available and logistics expertise to get what you need when you need it.

To date, seven branches and representative offices have already been established in China and overseas markets, with more expansion offices planned for the near future. In the international market, XDK has developed a solid reputation in targeted regions, including the US, Europe, Asia and etc., through partnerships with various leading industry companies.
