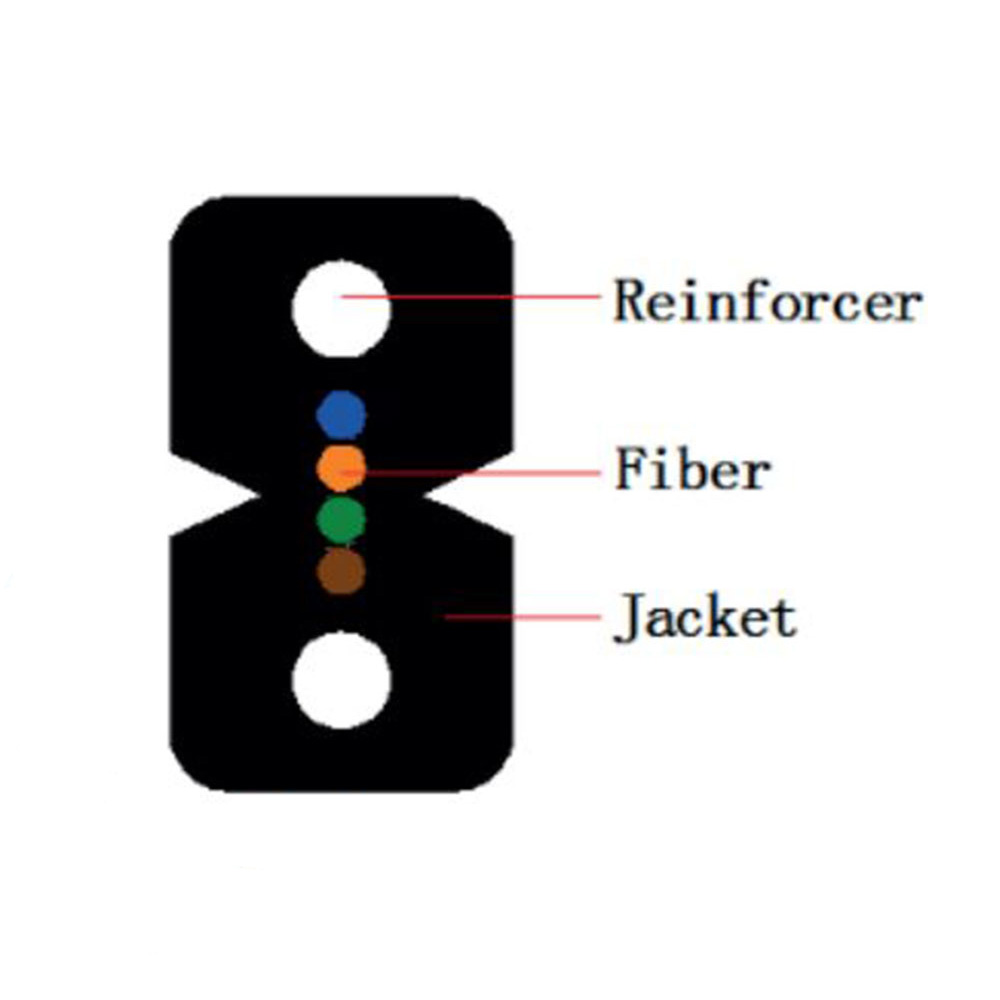

(GJXFH) FTTH butterfly drop cable, the optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then the cable is completed with a black or color LSZH sheath.
1.Weight, low cost, and practicability.
2.Suitable for limited space field of the branch, indoor series.
3.Laid to facilitate construction operations;part and the cable.
4.Jacket use low smoke, halogen-free flame-retardant materials.
5.Prevent lightning and strong electric environment.
6.FRP or KFRP strengthen the component materials.
Optical cable charateristics
1.Cable Description
1.1 Working condition
Transportation and storage temperature: －20℃～＋70℃
Installation temperature: －5℃～＋50℃
Operation temperature: －20℃～＋70℃
1.2 Minimum allowable bending radius
Static: 10H
Dynamic: 20H
2. Optical fiber in cable(ITU-G657A1)
Optical properties of the SM fiber are achieved through a germanium
doped silica based core with a pure silica cladding which meets
ITU-T G657A1, UV curable acrylate protective coating is applied
over the glass cladding to provide the necessary maximum fiber
lifetime.
Qualified fiber manufacturer: YOFC
Geometrical, optical, and mechanical characteristics of fiber in cable as the following table:
| Category | Description | Specification(After cable) |
| Geometrical Characteristics | Cladding diameter | 125.0 ± 0.7 mm |
| Cladding non-circularity | £ 1.0 % | |
| Coating diameter | 245± 10 mm(Before Colored) 250 ± 15 mm (Colored) | |
| Fiber curl (Radius) | ³ 4 m | |
| Core concentricity error | £ 0.5 mm | |
| Optical Characteristics | Mode field diameter at 1310 nm | 9.0 ± 0.4 mm |
| Mode field diameter at 1550 nm | 10.1 ± 0.5 mm | |
| Point discontinuity | £ 0.05dB | |
| Attenuation at 1310 nm | £ 0.40 dB/km | |
| Attenuation at 1383 nm | £ 0.40 dB/km | |
| Attenuation at 1460 nm | £ 0.30dB/km | |
| Attenuation at 1550 nm | £ 0.30dB/km | |
| Attenuation at 1625 nm | £ 0.30dB/km | |
| Dispersion in 1285 – 1330 nm | £ 3 ps/(nm·km) | |
| Dispersion in 1271 – 1360 nm | £ 5.3 ps/(nm·km) | |
| Dispersion at 1550 nm | £ 18 ps/(nm·km) | |
| Dispersion at 1625 nm | £ 22 ps/(nm·km) | |
| Zero dispersion wavelength | 1300 – 1322 nm | |
| Zero dispersion slope | £ 0.09 ps/(nm2·km) | |
| Cable cut-off wavelength | £ 1260 nm | |
| Polarization mode dispersion individual fiber | £ 0.2 ps/Ökm | |
| Polarization mode dispersion design link value (M=20, Q=0.01%) | £ 0.1 ps/Ökm | |
| Macro-bend loss (10 turns, 15mm radius,) | £0.25 dB at 1550nm | |
| Macro-bend loss (1 turns, 10mm radius,) | £ 0.75 dB at 1550nm | |
| Mechanical Specification | Proof stress level | ³100kpsi (0.69 GPa) |
Cable Specification
| Item | Parameters | |
Fiber | Number of fibers | 4 |
| Fiber type | SM/G657A1 | |
| Color | Blue/Orange/Green/Brown | |
Strength member | Material | FRP |
| Diameter(mm) | 0.45±0.05 | |
| Count | 2 | |
Out jacket | Material | LSZH |
| Color | Light Grey RAL7035 | |
| Cable diameter(mm) | 3.0(±0.1)×2.0(±0.1) | |
| Cable weight(kg/km) Approx. | 8.7 | |
Mechanical Performance of Cable
| Tensile performance(N) | Crush(N/100mm) | ||
| Short term | Long term | Short term | Long term |
| 80 | 40 | 1000 | 500 |
Requirement for Order
(1)Fiber sort: Single mode:G657
(2)Fiber brand: YOFC, Corning, Fiberhome,Fujikura,OFS etc.
(3)Jacket material: PVC,LSZH ( can be required).
(4)The fiber and tube color: according to stranded color, can be
required.
(5)Length of cable: generally is 2KM, can be required.
(6)Other requirement: can be negotiated.
Cable marking and cable reel marking
Cable marking
The cable sheath shall be marked with white characters at intervals
of one meter with following information:
(1)Purchaser’s name
(2)Cable type
(3)Fiber type and counts
(4)Year of manufacture
(5)Length marking
Notice: cable mark is available if requested by customer.
Cable reel
Details given below shall be marked with a weather materials on
both outer sides of the reel flange :
(1)Cable type and fiber counts
(2)Length of cable in meters
(3)Year of manufacture
Notice: shipping mark is available if requested by customer.
Packing Informations
(1)Packing material: Wooden drum
(2)Packing length: standard length of cable shall be 2 km. Other
cable length is also available if required by customer
Our advantages
Our certificates
(1) ISO9002
(2) SGS, ROHS
(3) ULE329066
(4) REACH
Our advantages
(1)Professional cable manufacturer
(2)About 20 years experiences in cable industry
(3)MOQ just 1Km
(4)ISO, UL , ROSH,REACH...certifications
(5)Can be customized production of fiber optic cable
