    144core Mpo Fiber Patch Cord , OM3 OM4 Mpo Trunk Cable

    Ask Lasest Price
    Brand Name : XDK
    Model Number : 12 Core Fiber OM3 OM4 Optical Fiber MPO MTP Truck Patch Cable
    Certification : DCR,ECR,FCR,ROHS,ISO9001
    Price : Negotiation
    Payment Terms : T/T D/P D/A
    Supply Ability : 5million termination per month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    144core Mpo Fiber Patch Cord , OM3 OM4 Mpo Trunk Cable

    MPO MTP Truck Patch Cable for Date center 12core 24core 144core 3.0mm single jacket or 4.6mm double jacket


    MPO/MTP harness patchcords pre-terminated cable refers to the use of MPO sIngle head 12 core or 24 connector at the end of the cable,
    and the other end of the cable is using the LC/SC/FC connector, the products are mainly used in those who need directly from the port or
    device area distribution frame wiring area is directly connected to the main system equipment. The structure can also be used for the
    extension of the optical fiber cable.

    Performance:

    END AEND B
    Connector TypeMTP/MPOMTP/MPOLCLC UnibootSC
    PolarityPolarity A, Polarity B, Polarity C
    IL(MTP/MPO)Standard ≤0.5 dB Ave ≤0.3dB
    IL(MTP/MPO)Elite: ≤0.35dB Ave: ≤0.2dB
    IL(LC/SC)Standard ≤0.25dB Low Loss : ≤0.15dB
    RLSM:≥60dB MM: ≥20dB
    Tester BrandEXFO & JGR
    Repeatability≤0.2dB
    Interchangeability≤0.2dB
    Mating1000 Times
    Opterating Temperature-20℃ ~ +70℃
    3D InterferometerFiber Height: 1000nm~3500nm
    Radius Long: 500mm min Radius Short: 50mm min Ferrule Height: 7.95mm min
    MM Core Dip: <100nm


    Test:

    Features:

    - Ulitize MPO/MTP connectors

    - Inner: Ceramic Ferrule

    - Available in Elite insertion loss and standarad insertion loss.

    - Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.

    - They use a simple push-pull latching mechanism for easy and intuitive insertion and removal.

    - It provides up to 8, 12, 16, 24 times the density, thereby offering savings in circuit card and rack space.

    - Available in OS1/2, OM1, OM2, OM3 and OM4, OM5

    - Telcordia’s GR-326-Core, IEC Standard
    - Green Production, RoHS Standard

    - Interface polished type has PC, UPC and APC

    - Support use in attaching directly to 40/100G transceivers

    - 100% factory tested, with test results included for each assembly


    - Polarity available, Cross Connection: AB/BA, Paralled Connection: AB/AB
    - Insertion loss type available in Standard, Elite/Low Loss
    - MTP/MPO connector type available in Male, Female, Male to Female
    - Cable length available in 1 to 999 meters, Fanout length available
    - Cable type available in round, ribbon
    - Improve and simplify fiber routing, decrease fiber management space


    Application

    - Metro

    - CATV

    - Passive fiber optic networks

    - Builing communication center

    - Bank Data center

    - Communication center rooms
    - FTTH (Fiber to The Home)

    - FTTA (Fiber to the attena)
    - LAN (Local Area Network)
    - FOS (fiber optic sensor)
    - Fiber Optic Communication System
    - Optical fiber connected and transmitted equipment

    - Defense combat readiness


    Production line:

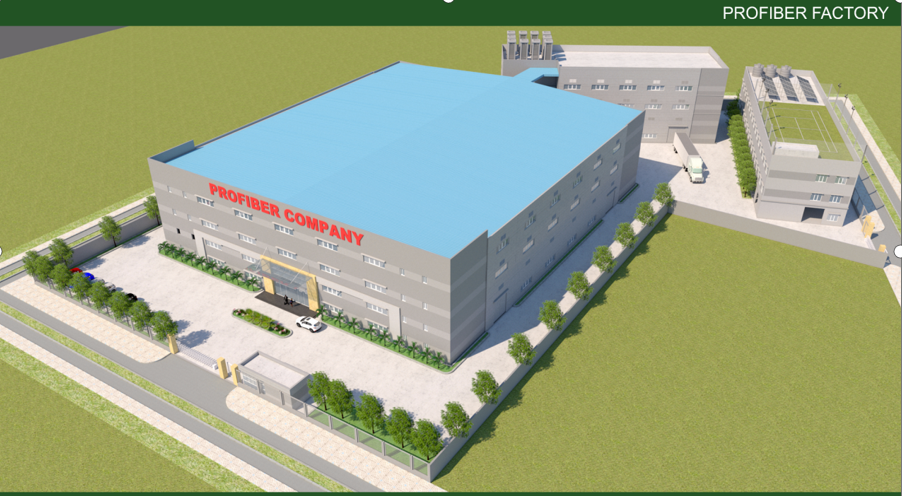

    Our Factory:
