| Brand Name : | XDK |
| Model Number : | OD-LC Patchcord |
| Certification : | ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS |
| Price : | negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 5 million termination/month |
| Delivery Time : | 5-8 work days |

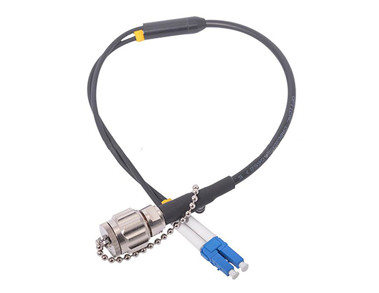

LSZH/TPU Fiber Optic ODC-LC Patch cord with Salt-mist Proof and EMI Protection
Description
ODC fiber optic patch cables with extremely robust outdoor
connector are designed to withstand harsh environment such as
mechanical loads, high thermal exposure, and demanding environments
like rain, salt and splash water. It is known for their ease of
installation and highest operation safety due to the robust and
ruggedized design. ODC military grade cables are
installation-friendly for fixed or mobile applications and transmit
reliably data over long distances under severe environmental
conditions.
Features
Specification
| Connector Type(optional) | End A : Socket / Plug End B : LC,SC,FC,ST | ||
| Fiber Type | SM(9/125um) | MM(50/125um,62.5/125um) | |
Polish | UPC | APC | UPC |
| Insertion Loss (typical) | SM:Loss≤0.70dB(Max),Loss≤0.50dB(typical) MM:Loss≤0.50dB(Max),Loss≤0.20dB(typical) | ||
Return Loss | ≥50dB | ≥60dB | ≥20dB |
Repeatability | 200 times typical change value ≤ 0.20dB | ||
Interchangeability | ≤ 0.20dB | ||
| Mechanical character | Socket / Plug:≤500N (Cable) | ||
| Protection level | IP67 | ||
| Fiber count(optional) | 2, 4, 6, 8 | ||
| Cable Diameter(optional) | 4.0,5.0mm | ||
| Jacket Material(optional) | LSZH,TPU | ||
| Operating Temperature | -20 ~ +70 ℃ | ||
| Storage Temperature | -40 ~ +85 ℃ | ||
Application
|
|
