| Brand Name : | XDK |
| Model Number : | Simplex SC/UPC-SC/UPC Fiber Optic Patch Cord |
| Certification : | ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS |
| Price : | negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 5 million pcs per month |
Best Price 10m SC-SC SingleMode Fiber Optic Patch Cable 9/125μm For Network Solution
Production description:
- Fiber Optical Patch Cord is a length of optical fiber with two ends adding connectors to connect beam path.
- The patch cords assembled with various types of connectors (such as FC, SC, ST, LC,MU,MTRJ etc.)
- Polished fiber end-face: PC/UPC and APC. We employ advanced technique and equipment to manufacture so as to ensure the high quality of mass production.
Production specification:
| Connector Type | SC/UPC to SC/UPC | Fiber Count | Simplex |
| Fiber Mode | G652D 9/125um | Working Wavelength | 1260~1625nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
| Attenuation at 1310/1550nm | 0.36/0.22 dB/km | Ferrule Materials | Ceramic |
| (Typical) | |||
| Cable Diameter | 3.0mm | Strength Member | Aramid yarn |
| Minimum Bend Radius | 10D | Minimum Bend Radius | 20D |
| (Long term) | (Short term) | ||
| Cable Jacket | PVC or LSZH | Cable Colour | Yellow |
| Operating Temperature | -20~70°C | Storage Temperature | -40~85°C |
Product features:
1. Low insertion loss, high return loss, Good Repeatability and interchange ability.

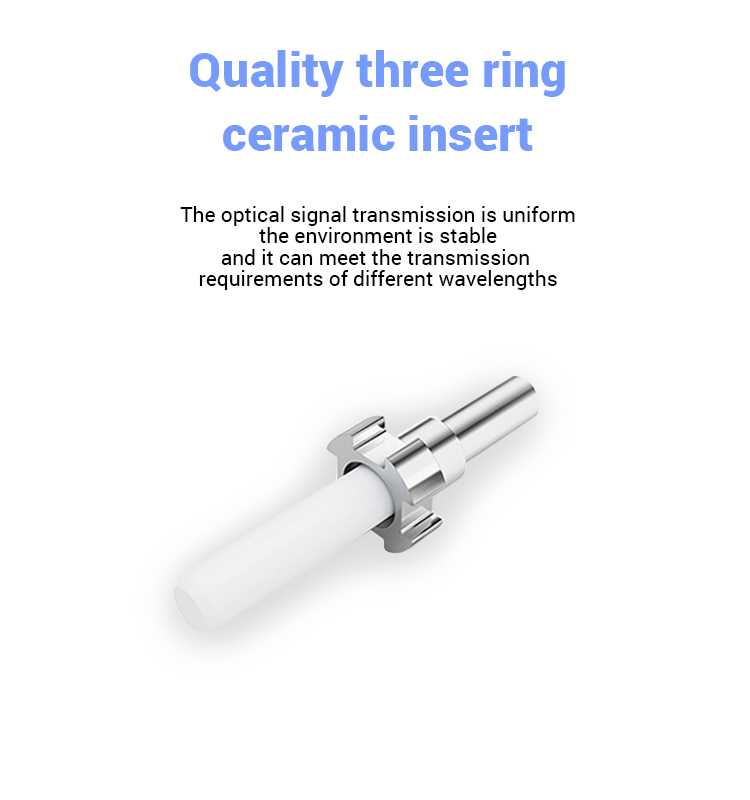

2. This product is made of new ceramic insert with excellent performance, stability and durability.
3. The products conform to the international IEC standard, and are appreciated by the majority of engineering wiring companies.
4. PVC self sealed bag packaging. Equipped with dust cap to ensure communication quality is not affected
5. Each patch cord is strictly testedtest report is packed with product.
Professional:
1. Advanced production and testing equipment.
2. Professional manufacturer, 100% tested.
3. Full compliance with IEC-617, TIA/EIA-604, GR326, RoHs.
4. Our company has experienced professional team.
5. Provide reliable solutions and satisfactory services.
6. Warmly services with careful attentions.
7. Can provide your specific inquiry within 24 hours. Advanced production and testing equipment.
Application:
●Applicable to special cases that has no room for installation of
Cassette type PLC splitter
●FTTX/FTTH Systems
●CATV Links
●Optical Signal Distribution
●Passive Optical Networks (PON)
●DWDM/CWDM systems
●Test equipment
●LAN/MAN/WAN network
Our two manufacturing in China and Vietnam with capacity over 60000sqm production based, headquatered in Huizhou with branches in Hong Kong, Shenzhen, Munich and United States. We specialize in the manufacturing and create value to our partners through our fiber optic products and accessories range.
FAQ:
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for
order quantity.
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B. Secondly We quote according to your requirements or our
suggestions.
C. Thirdly customer confirms the samples and places deposit for
formal order.
D. Fourthly We arrange the production.
|
|
