    19" Rack Mount 1x16 PLC Fiber Splitter SC / APC For Computer Room

    Ask Lasest Price
    Brand Name : XDK
    Model Number : XDK-PLC-B
    Certification : ISO9001, ISO14001, UL, CPR
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 30000 units per month
    • Product Details
    • Company Profile

    19" Rack Mount 1x16 PLC Fiber Splitter SC / APC For Computer Room

    19" Black Rack Mount Shelf 1x16 PLC Fiber Splitter SC / APC For Computer Room


    Description:

    PLC splitter, also called Planar Waveguide Circuit splitter, is a device used to divide one or two light beams into multiple light beams uniformly or combine multiple light beams to one or two light beams. ... PLC splitter provides a low-cost light distribution solution with high stability and reliability.


    1×16 Fiber PLC Splitter, 1U Rack Mount Type, Singlemode
    PLC Fiber Optic Spliter 1x16 1U 19" Rack Mount SC/APC Singlemode For FTTH 0
    Product Specification
    Package StyleRack MountConfiguration Type1x16
    Fiber TypeSinglemode G.657A1Connector TypeSC/APC
    Insertion Loss≤13.7dBReturn Loss≥55dB
    Loss Uniformity≤1.2dBDirectivity≥55dB
    Polarization Dependent Loss(PDL)≤0.3dBTemperature Dependent Loss≤0.5dB
    Wavelength Dependent Loss≤0.5dBOperating Bandwidth1260~1650nm
    Split Ratio50/50Operating Temperature-40 to 85°C (-40 to 185°F)
    Storage Temperature-40 to 85°C (-40 to 185°F)Dimensions (HxWxD)1.73"x19.00"x9.84" (44x482.6x250mm)

    1U Rack Mount Type PLC Splitter
    • 1x16 PLC splitter, SC/APC connector
    • Good channel-to-channel uniformity
    • High polarization extinction ratio

    PLC Fiber Optic Spliter 1x16 1U 19" Rack Mount SC/APC Singlemode For FTTH 1

    PLC Fiber Optic Spliter 1x16 1U 19" Rack Mount SC/APC Singlemode For FTTH 2


    Perfect Details of 1U Rack Mount Type PLC Splitter

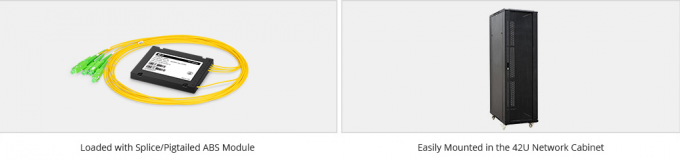

    Simple Mounting and Easy Connection

    Loaded with a pigtailed ABS module, can be easily mounted in cabinet for uniform optical signal distribution

    PLC Fiber Optic Spliter 1x16 1U 19" Rack Mount SC/APC Singlemode For FTTH 3

    PLC Fiber Optic Spliter 1x16 1U 19" Rack Mount SC/APC Singlemode For FTTH 4

    Company information/ About us.

    Our two manufacturing plants in China and Vietnam with capacity over 6000sqm production based,and our geography area give us a confidence to serve our old partners and future partners with wide high-quality fiber connectivity products.
