    Compact Low PDL FTTH Passive Fiber PLC Splitter

    Ask Lasest Price
    Brand Name : XDK
    Model Number : PLC Splitter
    Certification : ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

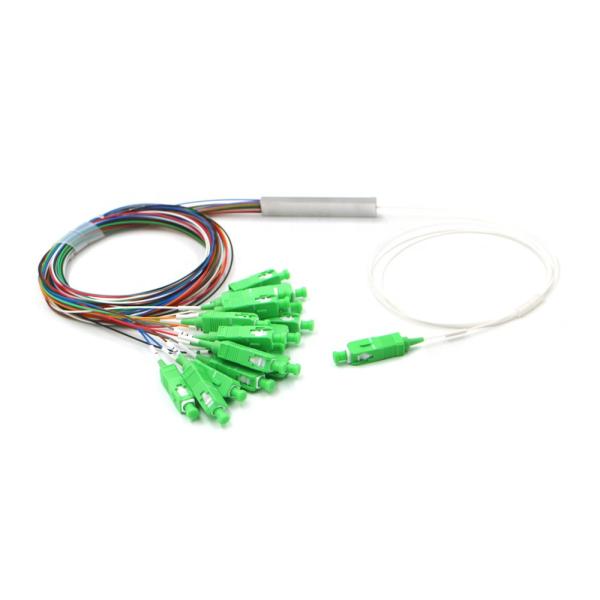

    Compact Low PDL FTTH Passive Fiber PLC Splitter

    Spliter Optic Production Line Ftth Passive Series Fibra Optical Module Fiber Plc Splitter


    Description

    PLC splitter is based on a quartz substrate integrated waveguide optical power distribution device, has the advantages of small volume, the working wavelength range, high reliability, good light uniformity etc characteristic, is especially suitable for passive optical network ( EPON, BPON, GPON etc ) connected local and terminal equipment and realize the optical signal devide.

    PLC splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. Wolon provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.

    Compact Low PDL FTTH Passive Fiber PLC SplitterCompact Low PDL FTTH Passive Fiber PLC Splitter

    Feature

    • Low Insertion loss and PDL
    • Compact Design
    • Good channel-to-channel uniformity
    • Wide Operating Wavelength: From 1260nm to 1650nm
    • High Reliability and Stability

    Specification

    Technical Test Data
    Split Ratio1x21x41x81x161x322x22x42x82x162x32
    Wavelength1260~1650 (nm)
    Insertion Loss(dB)≤3.6≤7.2≤10.2≤13.5≤16.2≤3.8≤7.5≤10.7≤14≤17
    Uniformity(dB)≤0.4≤0.6≤0.8≤1.0≤1.2≤0.6≤1.0≤1.2≤1.5≤1.8
    PDL(dB)≤0.2≤0.2≤0.3≤0.3≤0.3≤0.2≤0.2≤0.3≤0.3≤0.3
    Directivity(dB)≥55
    Operating temperature-40~+85

    FAQ

    Q1. What about the price?
    Re: We usually quote within 12 hours after we confirm the technical data of your products.

    Q2. What's the payment method?
    Re: We accept L/C, T/T, Western Union, MoneyGram, PayPal etc.

    Q3. What’s your terms of payment?
    Re: 30% in advance, and 70% before shipment

    Q4. How to ship the items to me?
    Re: Courier(DHL,TNT,FEDEX,UPS,EMS), Airfreight, Ocean Ship are available.

    Q5. How long is your delivery time?
    Re: The general delivery time is 5-7 days after order is confirmed, it depends on the order quantity.

    Q6. Can you send me a free sample?
    Re: Yes, we are willing to send free sample, if you would like to pay the shipping costs.

    Q7. Do you accept OEM or ODM?
    Re: Yes, we're factory, any your customized requirements we can do our best to help you realize.
